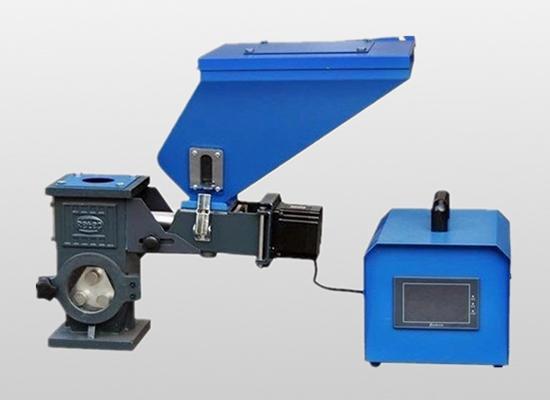

Color Masterbatch Blending Equipment
Application
The metering color masterbatch blending equipment is used in the automatic proportioning of new material, secondary material, color masterbatches and additives.
Features
1. This series uses a DC brushless motor, and blending is done based on a prechosen proportion, which is then automatically converted into a rotational speed through settings that have been input into the digital microcomputer control system. This directly drives the precision screw extruding material. The error value is no more than ±1%.
2. The motor’s reduction ratio is divided into 30:1 and 100:1, and the screw can be directly divided into 12, 14 and 16mm, which can provide anywhere from 0.05 to 64 kilograms per hour of different output materials for customers to choose from.
3. Six models are available to choose from, with outputs of 0.1~32kg/hr. In addition, there are double color masterbatch blending equipment, any two sets of which can be used simultaneously to meet customer needs.
| Model | SCM-30-16 | SCM-30-14 | SCM-30-12 | SCM-100-16 | SCM-100-12 | SCM-100-12 |
| Motor power (kg) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor speed (r.p.m) | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 |
| Blending power (kw) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Screw outer diameter (mm) | 16 | 14 | 12 | 16 | 14 | 12 |
| Output (kg/hr) | 1.1~32 | 1.1~20 | 0.3~10 | 0.5~15 | 0.2~8 | 0.1~4 |
| Storage bucket (L) | 10 | 10 | 10 | 10 | 10 | 10 |
| Reduction ratio | 30:1 | 30:1 | 30:1 | 100:1 | 100:1 | 100:1 |
| Main raw material door | Optional | |||||
| Blender | Optional | |||||
| Foot stool | Optional | |||||
| Magnet frame | Optional | |||||
| Outline size | 580(H)*530(W)*290(D)mm | |||||
| Net weight | 29kg | |||||
Remarks
The number of the above models is determined based on a 1:2 proportion, and a diameter of 2 to 3mm masterbatch particles, with continuous operation as the testing standard.
Machine voltage specifications are: 1Φ, 230V, 50Hz.

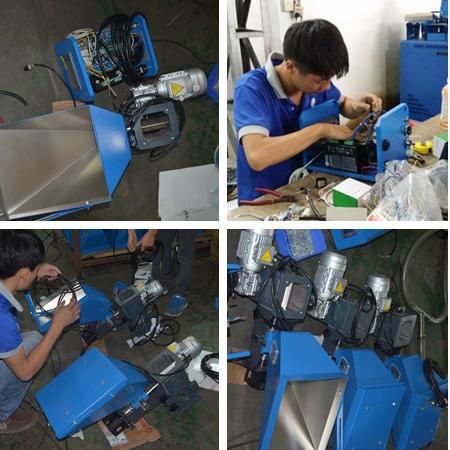

Workshop installation drawings
