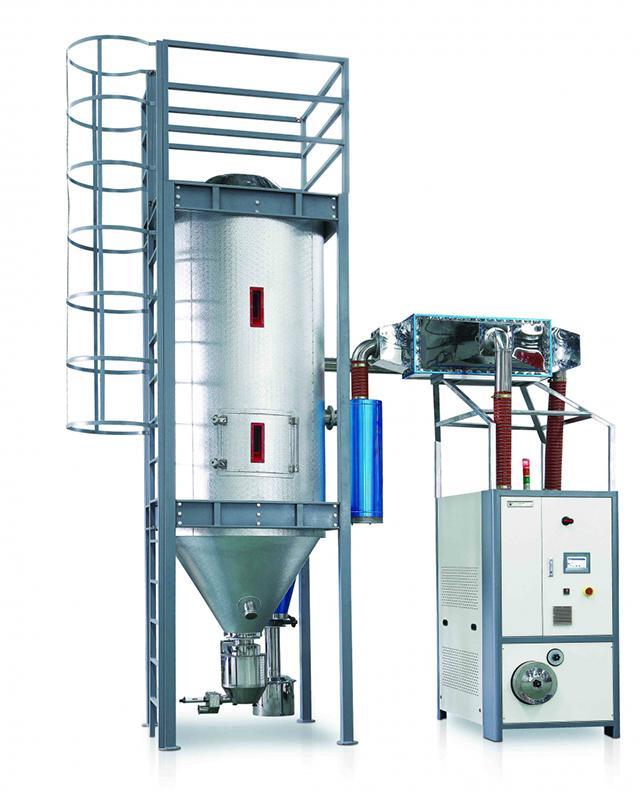

The energy saving dehumidifying drying system plastic resin dryer is specifically applicable to the high efficiency dehumidification operation of engineering plastics. It is widely applied to injection molding, extrusion, plastic molding and processing and many other industries, as indispensable dehumidifying drying equipment for the production of plastic products in their earlier stage. The saving dehumidifying drying system is suitable for all kinds of plastic materials that need be dehumidified and dried, including PET, TPU, PMMA, PLA, SGP, PS, ABS etc.

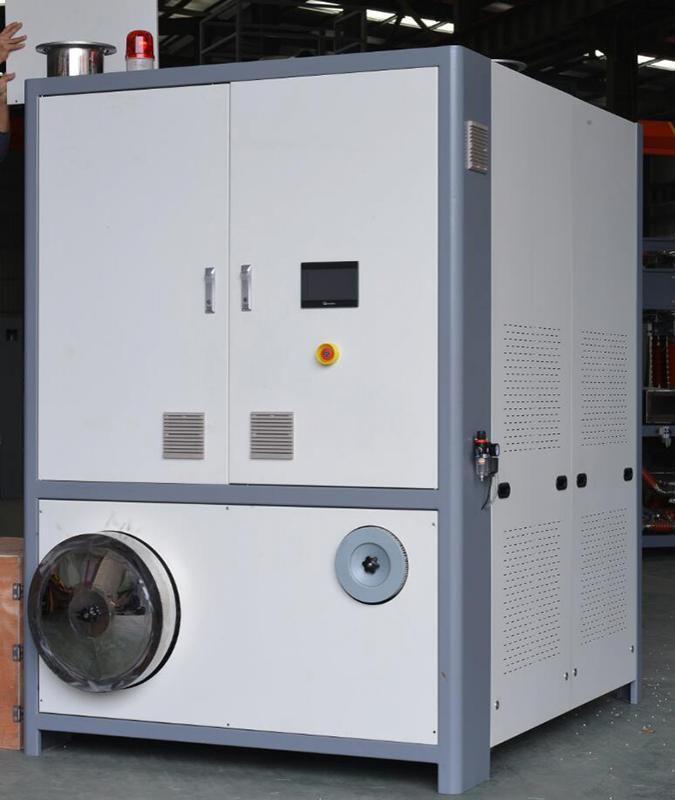

The body of the dehumidifier features a compact design to save space.Different types of dehumidifiers can be selected for various materials and capacities.
|Raw material||Drying time h||Drying temperature ℃||Water content before drying %||Water content after drying %||HD150||HD200||HD300||HD400||HD500||HD600||HD800||HD1000||HD1200||HD1600||HD2200||HD2600||HD3000|
● The dew point temperature can reach -60℃.

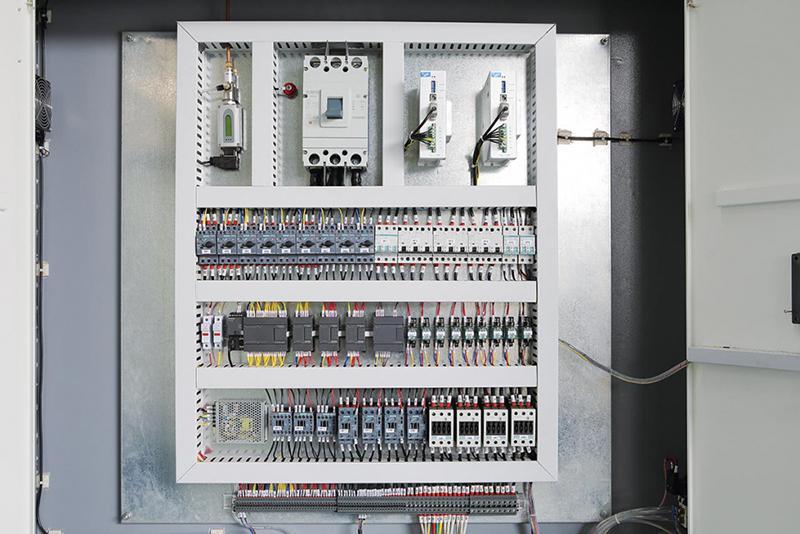

● SIEMENS electronic components are configured.
● 10 inch color PLC control panel, simple and easy to operate.

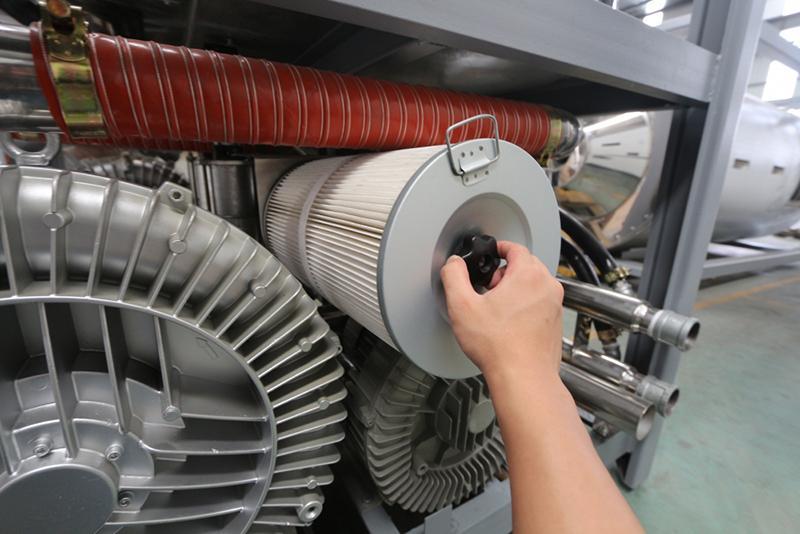

External filter core
External filter core, convenient for cleaning.

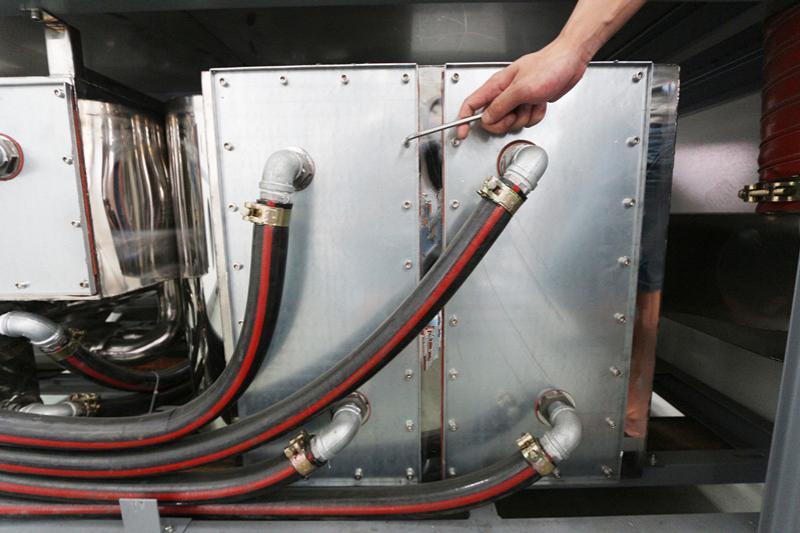

The condenser is easy to disassemble for maintenance.

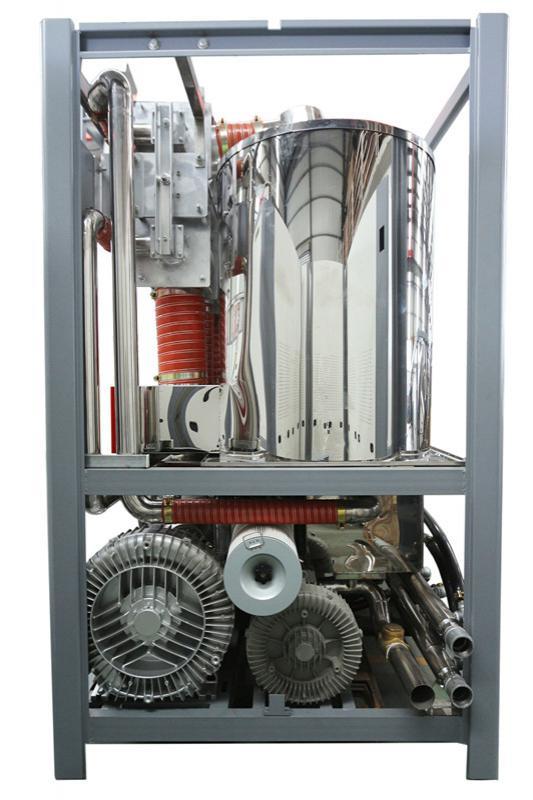

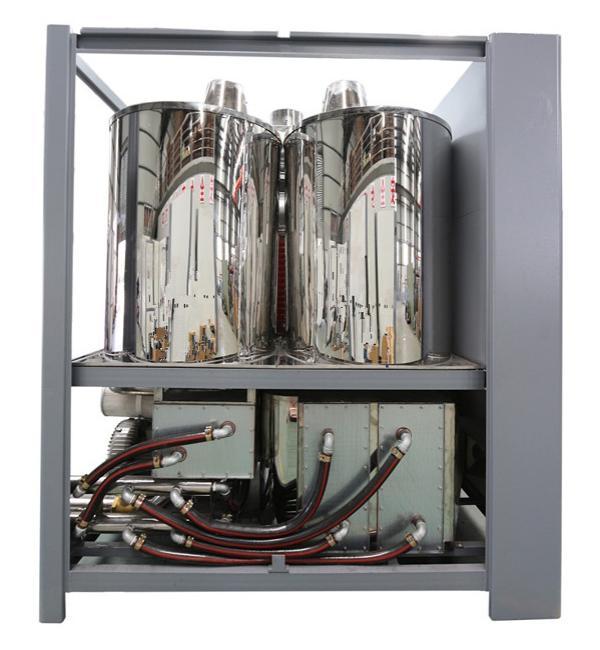

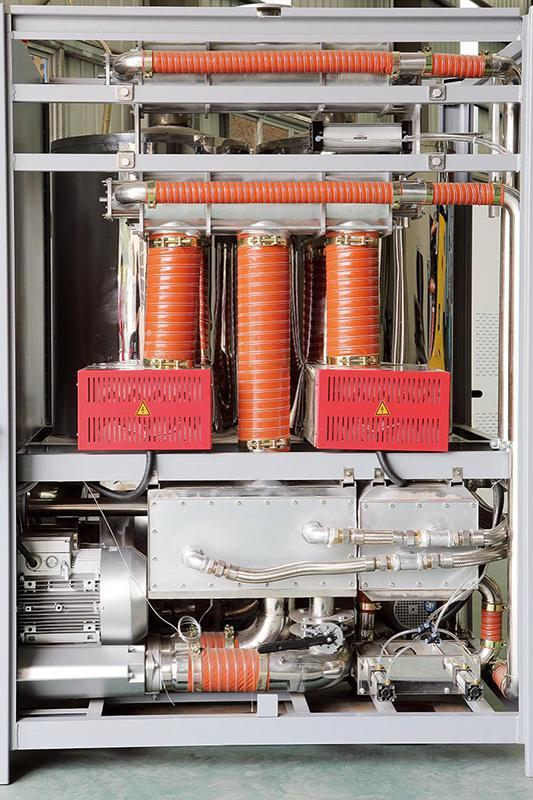

Equip with two molecular sieve towers for alternate operation, which can stably provide the continual low dew-point dry air.
The regenerated gas is cooled to the ambient temperature and then discharged, which does no influence to the temperature in the workshop.

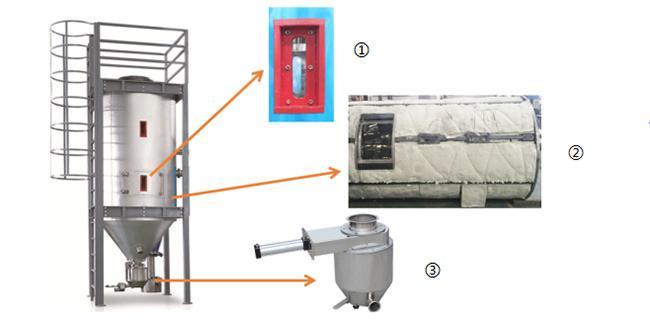

① 80mm thick insulation layer observation door, convenient monitoring.
② Wrapped with 80mm thick aluminum silicate cotton preserves the heat within and saves energy.
③ Anti-eccentric feeding device, uniform blanking, no material fault and single side blanking.

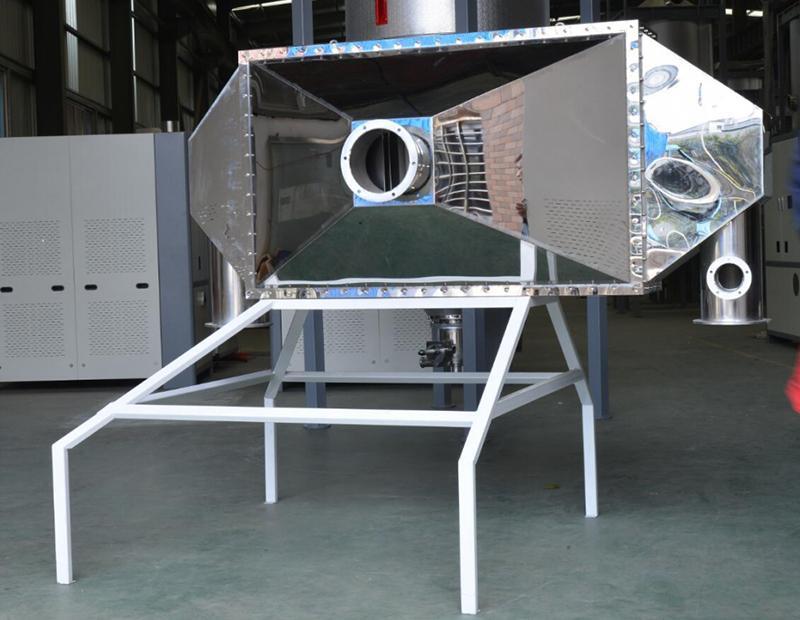

The box is a thermal energy converter with a copper tube super sheet composite design, which effectively guarantees a smooth flow within the air duct and improves the recovery rate of heat energy.

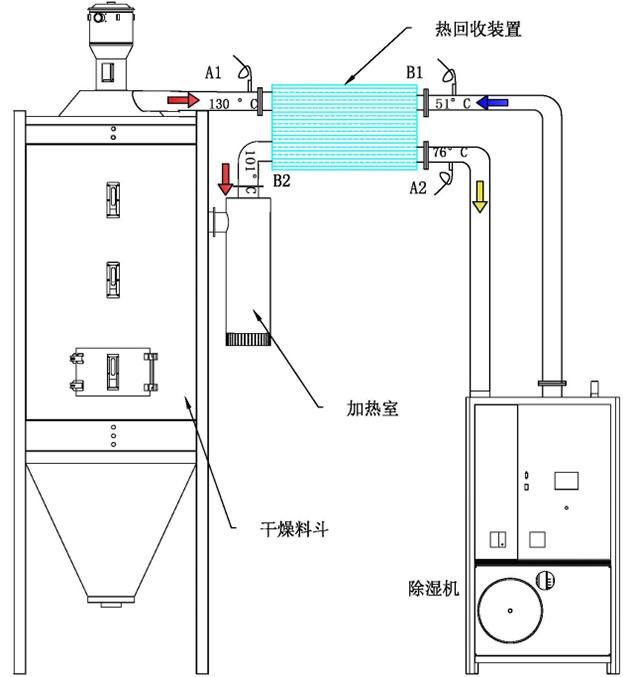

The high temperature air returned from the drying hopper creates a heat sink with the low temperature air that will enter the heating box. The return air is returned from the A2 to the dehumidifier from the A1 through the heat recovery unit. Meanwhile, the dry air enters the heating box from the B2 through the heat recovery unit from B1. The temperature of the returned high temperature air is reduced, and the temperature of the low temperature air entering into the heating box is increased, so as to achieve the purpose of heat recovery and minimizing energy consumption.

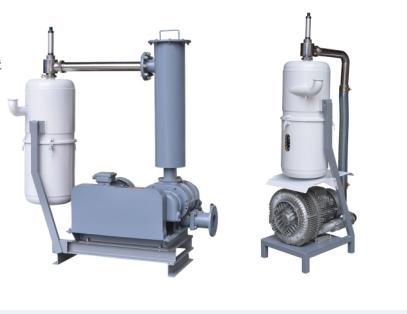

The HF feeder series is equipped with a high efficiency vacuum pump with a delivery capacity of up to 1200 kg/h, the maximum conveying distance of 100 meters. It is configured with a cylinder filter which is tightly structured and combines the cyclone effect with dust separation, and is especially suitable for the delivery of dust laden materials
1. Maintenance free motor, convenient filter core cleaning.
2. Noise level is lower than 78DB (A)
3. Vertical design scheme, small covering area.
Why should you use the dehumidifying drying system?
Most engineering plastics and plastic alloy granules contain moisture content to varying degrees, and the moisture content is distributed on the surface of and inside plastic granules. If plastic granules are not properly dried, then the intrinsic quality and appearance quality of plastic products will be affected, while the processing will be more difficult. The intrinsic quality of plastic products is manifest in the significant decrease of its performance, the increase of the internal stress, easy cracking, the promotion of the polymer’s hydrolysis and degradation; the appearance quality in product yellowing, bubbling, defect, silver, markings, as well as the decrease of transparency, product cracking, inaccurate size, poor viscosity.
The presence of moisture, in injection molding and extrusion molding process results in the irregular fluctuation of the plastic melt apparent viscosity, the melt pasting passageway, occasional severe salivation, thus causing difficulties in molding. For most engineering plastics and plastic alloys, strict drying is particularly important, especially for recycled plastics, after washing, granulation and other regeneration processes, of which the moisture content is much higher than standard, and more stringent drying is needed.
Hejin is a plastic industry manufacturer, we manufacture include resin dryers, PET crystallizers, industrial chillers, plastic materials pre-dehumidification system, resin blenders and mixers, also offer all plastic processing individual machines like material hopper, feeders and collectors, we have custom-made service business, according to your need to make all the plastic processing machines and resin equipment for you, we are a leading plastic product manufacturer in China, and experienced by more than 25 years focused on the plastic industry, we are after considering all related then offering good quality plastic products.
