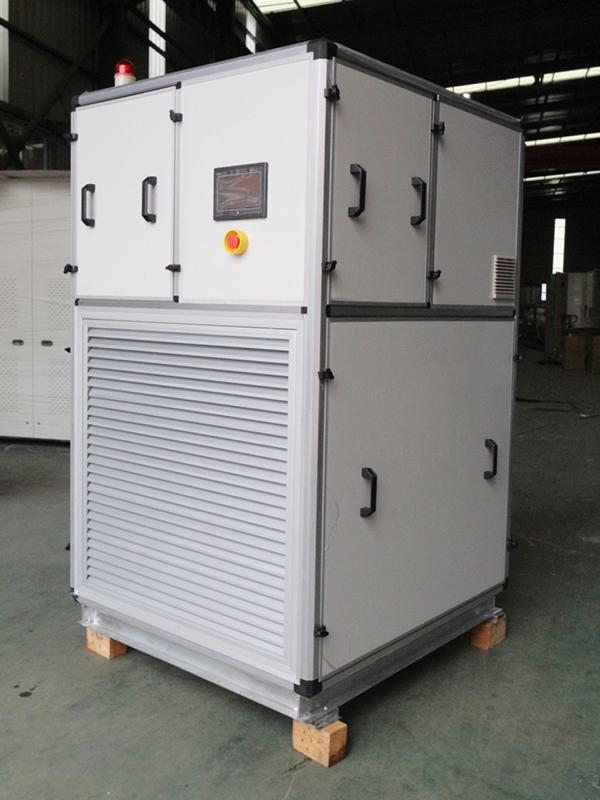

The Hejin molded desiccant dryer is designed for use in plastic molding operations. It solves the problems caused by condensation in molds due to their use of chilled water to shorten the molding time. This is especially true when PET preform is ejected and molded.
During the production process, when the mold surface temperature is lower than the dew point temperature of ambient air, condensation will form and negatively affect the quality of the finished product and reduce overall production efficiency. This condensation can also lead to corrosion over time as well.

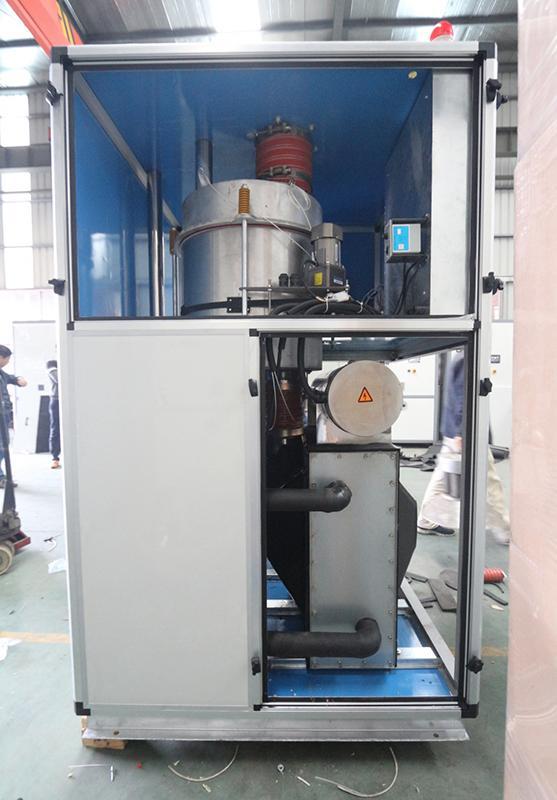

This machine adopts a cellular rotary system to carry out the dehumidification operation, which can ensure that the low dew point air environment is always maintained at -8℃~-15℃ around the mold, so as to prevent the mold from generating condensation. It is not affected by seasonal changes, greatly reducing the proportion of defective products.Technical Parameters of Desiccant Dryer
|Main air blower||1.1KW||2.2KW||3KW|
|Drying air flux||1200m³/H||1800m³/H||2400m³/H|
|Dry wind temperature||30 ℃||30 ℃||30 ℃|
|Desiccant wheel (Switzerland)||φ440*300||φ550*200||φ550*300|
|Motor for desiccant wheel||25W||25W||25W|
|Cooling water||Water pressure||0.2-0.3MPa|
1. With all-digital P.I.D micro processing control to accurately display all the working temperatures of mold dehumidification.
2. Cellular design that provides a stable dehumidification wind drying temperature
3. Install the main power switch to ensure operation and maintenance safety.
4. Cooling and filtering functions of return air
5. Prolong the service life of the mold, reduce the corrosion, defects and defective products
6. The drying wind temperature of the exit to the mold is about 30℃, to maintain the temperature around the mold at the constant normal temperature to avoid the condensation of the window.
7. Using double panel structure, interior and exterior plate made of color steel, thermal insulation thickness 25mm, beautiful in appearance, small in size, easy to move.
Hejin molded desiccant dryer series can produce the dry airflow with low to -10°C dew point, which can eliminate the dew from forming around the mold area. The drying range is 1200-2400 m3/h and can be used with one or two injection machines.
The microprocessor with PID algorithm accurately controls each working temperatures of mold dehumidification, and an efficient dehumidifying wheel is equipped to lock moisture tightly to ensure synchronous regeneration of stable dry air and provide stable dew point.
According to the requirements, a heat exchange system for the air outlet can be configured to control the temperature of dry air. Under all operating conditions (including tropical climate), the molded desiccant dryer can always ensure maximum performance and reliability, greatly improving the product quality standard and reducing the production cost.
Hejin is a plastic industry manufacturer, we manufacture include resin dryers, PET crystallizers, industrial chillers, plastic materials pre-dehumidification system, resin blenders and mixers, also offer all plastic processing individual machines like material hopper, feeders and collectors, we have custom-made service business, according to your need to make all the plastic processing machines and resin equipment for you, we are a leading plastic product manufacturer in China, and experienced by more than 25 years focused on the plastic industry, we are after considering all related then offering good quality plastic products.
